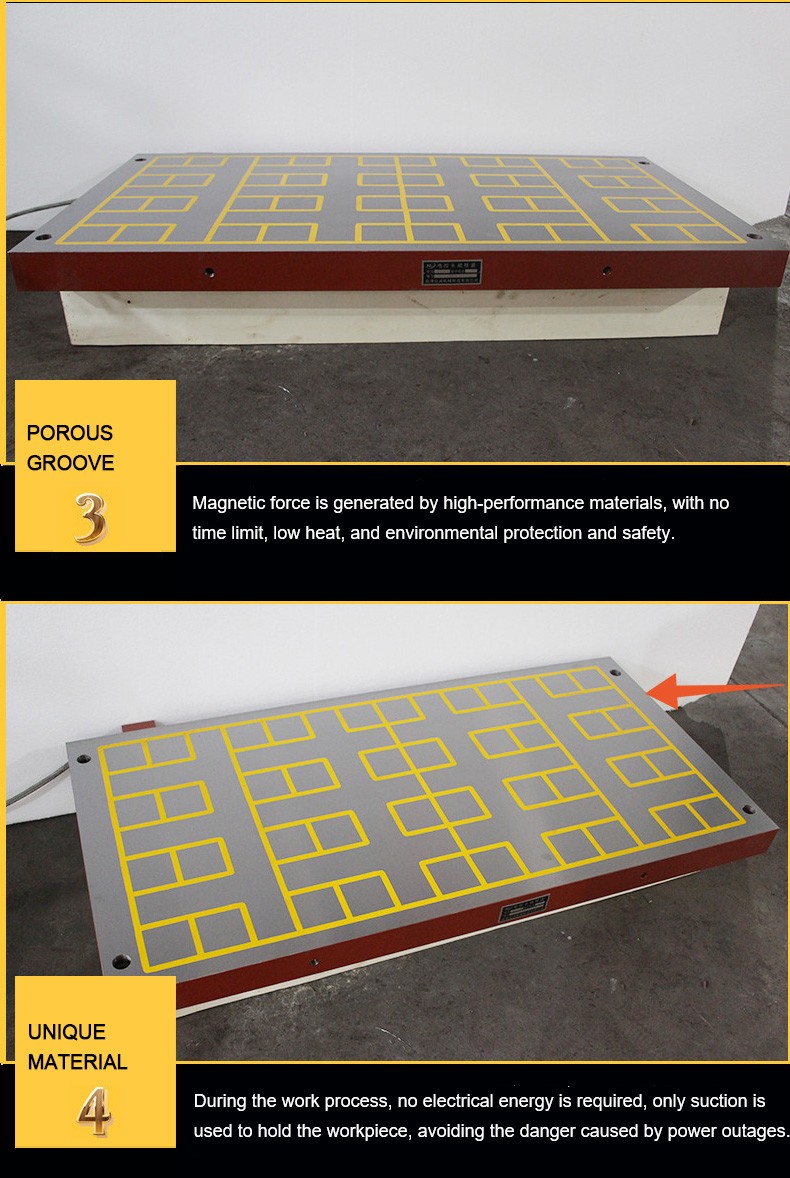

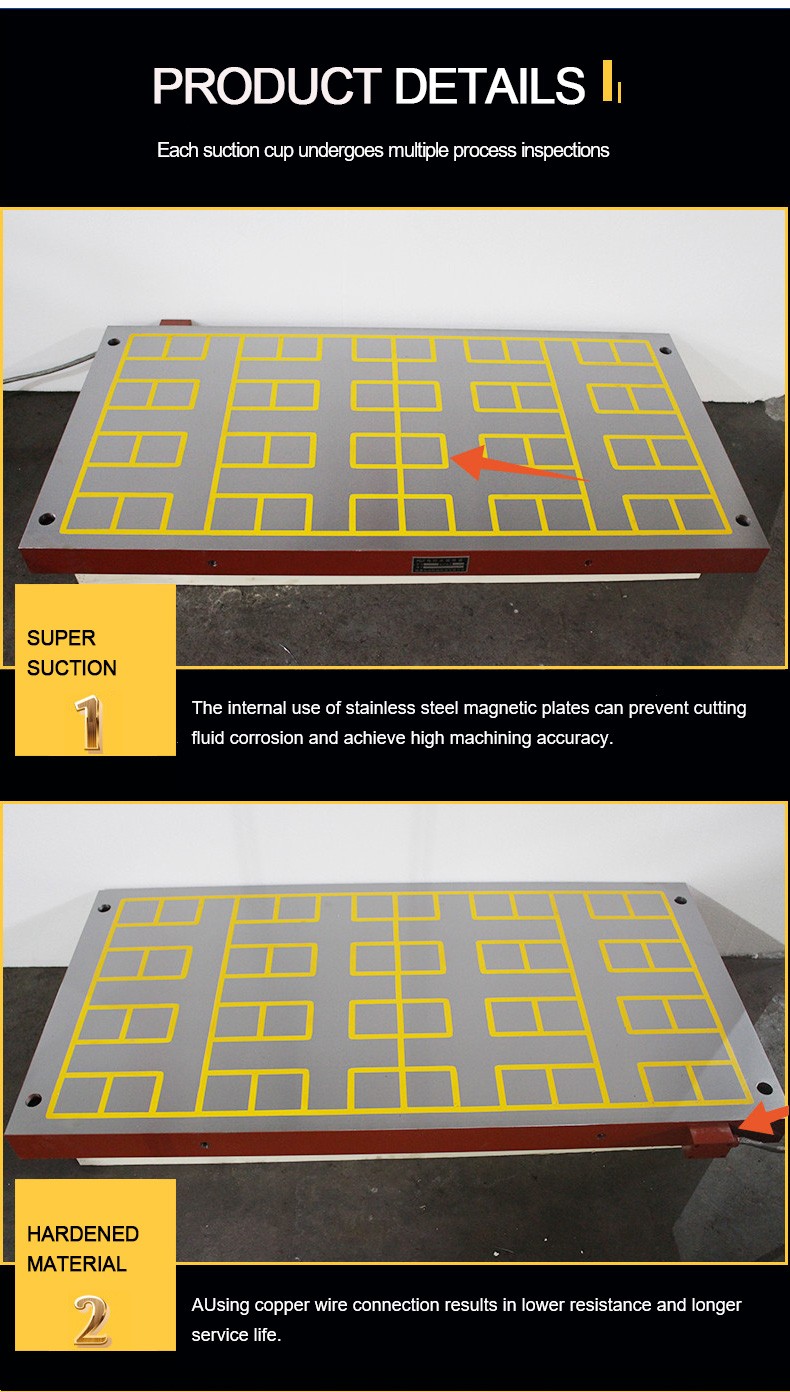

Electric permanent magnet chuck for gantry milling machine

Product Introduction

Suitable for ordinary or large gantry milling machines and large machining centers, it can be used together with one or multiple machines. The suction cup magnetic pole distribution is reasonable, the magnetic utilization rate is high, and it can meet the requirements of customers to different degrees. After the suction cup is instantly powered on, it becomes a permanent magnet that can firmly suck the workpiece for machining positioning. After applying reverse current, the workpiece can be demagnetized and removed, which is safe, energy-saving, easy to operate, no temperature rise deformation, and high machining accuracy.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point

Suction force: ≥ 160N/cm2

Application

Suitable for ordinary or large gantry milling machines and large machining centers.
