Permanent magnet lifter

Introduction:: Made of high-performance magnetic materials, it has a smaller volume, lighter weight, greater suction force, unique magnetic circuit design, almost zero residual magnetism, and high safety factor.

Collect

Details

Product Introduction

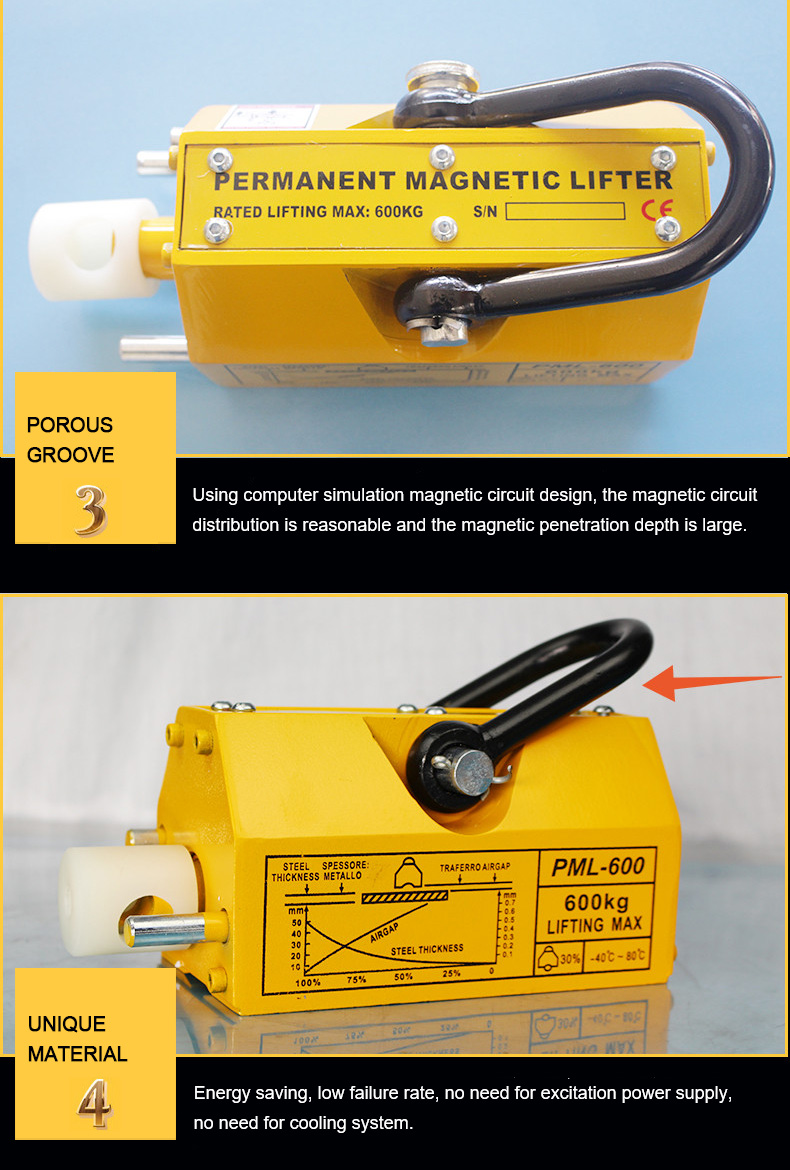

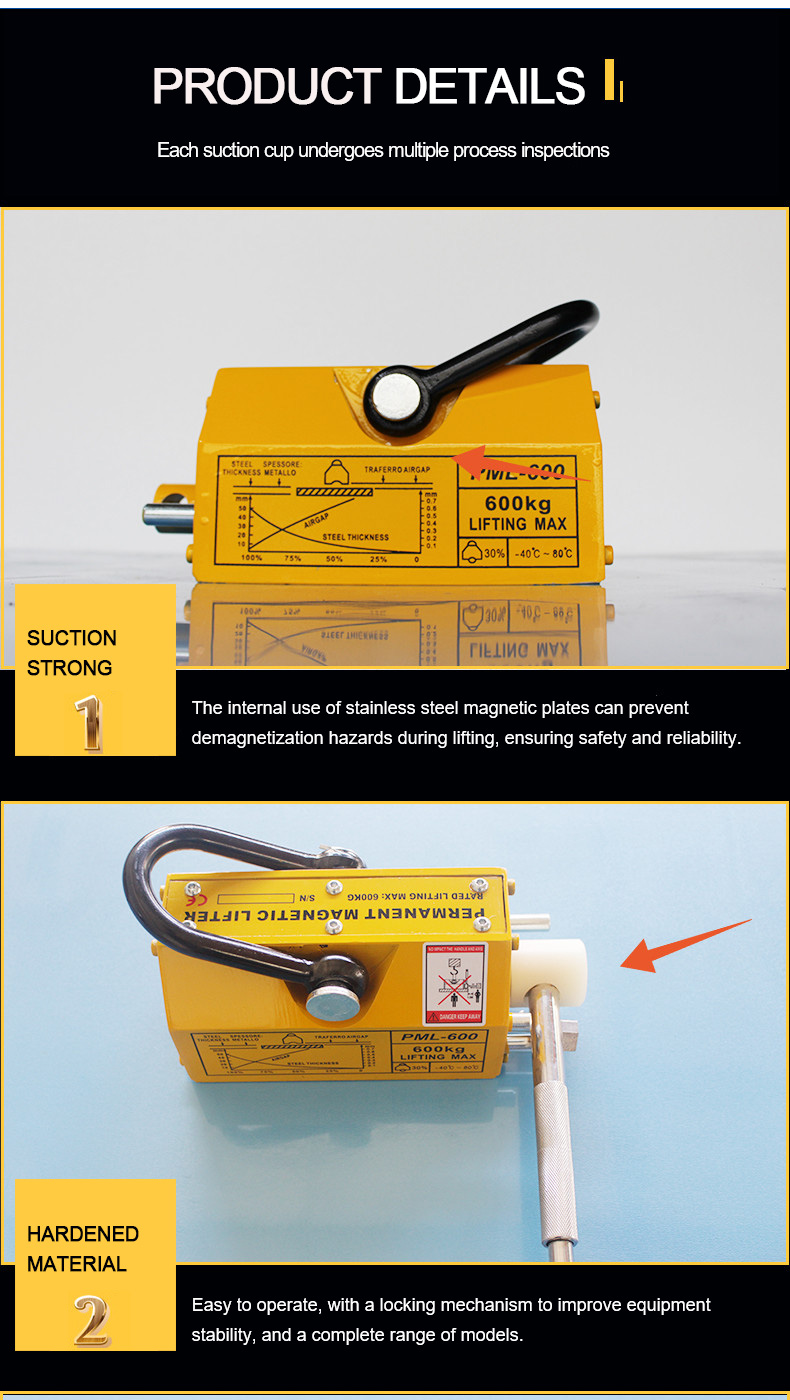

Ordinary permanent magnet cranes are made of high-performance magnetic materials, with smaller volume, lighter weight, and greater suction force. Unique magnetic circuit design, almost zero residual magnetism, high safety factor, large pull-out force, 3.5 times the rated lifting capacity. The handle switch is equipped with a safety button, which can be operated with one hand for safety and convenience. No need for electricity, the magnetic force will never decay. Can be operated in the field and widely used for lifting and transporting steel, leveling mechanical parts, and installing and transporting various grinding tools.

Sheet	Total length	Bottom length	wide	high	Handle length	Gross weight(Kg)	weight(Kg)
300	173	163	133	58	220	10.9	9
600	268	233	162	74	284	22.7	21
1000	348	302	191	91	324	38	36.5
3.5 times	Total length	Bottom length	wide	high	Handle length	Gross weight(Kg)	weight(Kg)
100	126	94	63	75	165	3.65	3
200	154	123	64	75	165	4.8	3.95
400	194	162	94	93	207	10.55	9.25
600	250	216	110	117	241	20	18.2
1000	303	263	135	140	269	34.5	33
1500	350	308	136	140	269	42	39
2000	393	352	154	168	368	64	61
3000	483	443	155	168	368	80	78
5000	576	528	230	222	494	200	191.5
3.5 times	Total length	Bottom length	wide	high	Handle length	Gross weight(Kg)	weight(Kg)
400	200	168	94	106	220	11.5	10.6
600	250	218	116	116	260	22	18.8
1000	311	271	145	147	310	42	36.2
2000	428	388	160	172	390	75	71
3000	499	457	184	184	450	109	104.7
5000	731	568	256	258	712	246	235

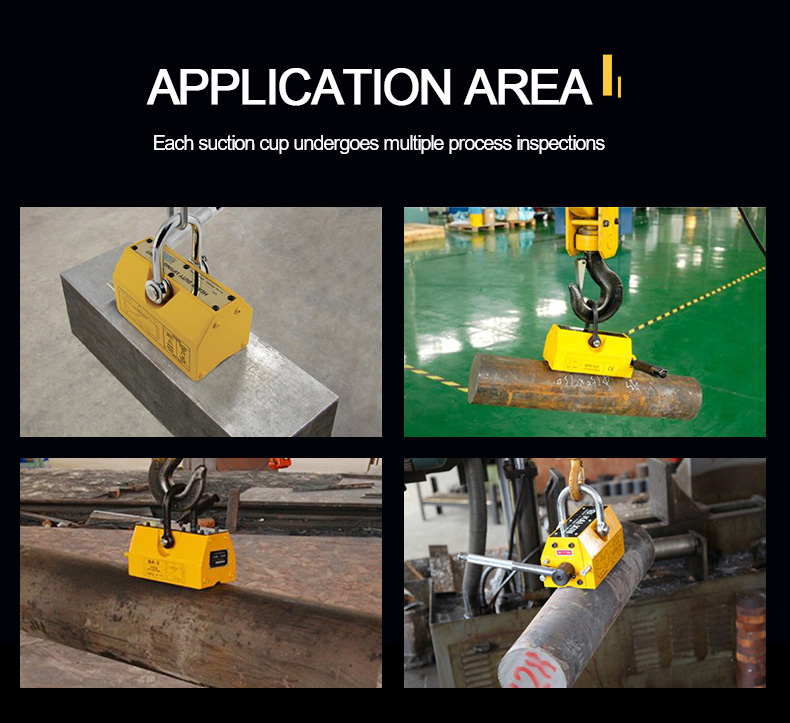

Application

Permanent magnet cranes are widely used for lifting and transporting steel, leveling mechanical parts, and installing and transporting various grinding tools.
