Hollowed-out multi-point vacuum chuck

Introduction:: The suction cup surface is equipped with a sealing pad, which increases the adhesion between the product and the suction cup, effectively enhances the adsorption capacity and stability, and is safer and more efficient.

Collect

Details

Product Introduction

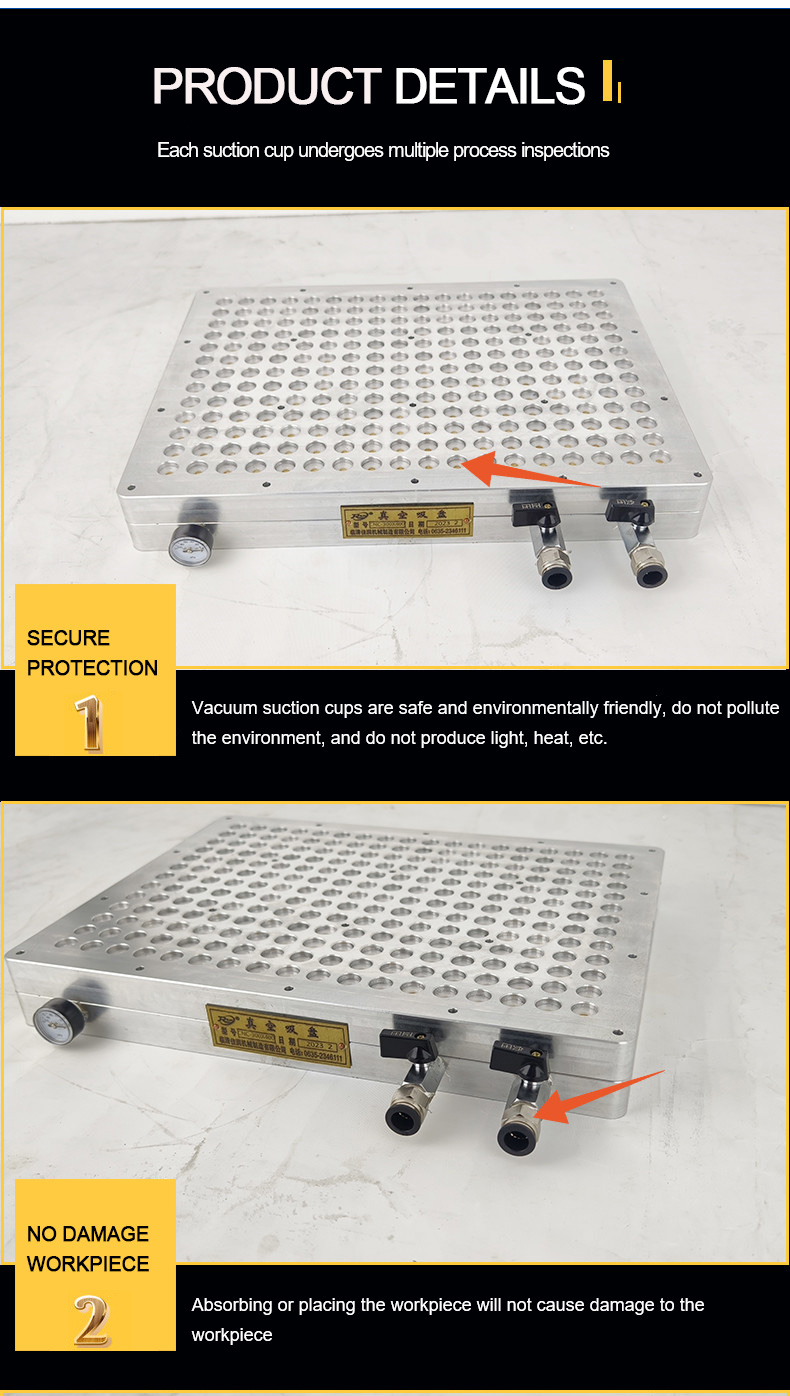

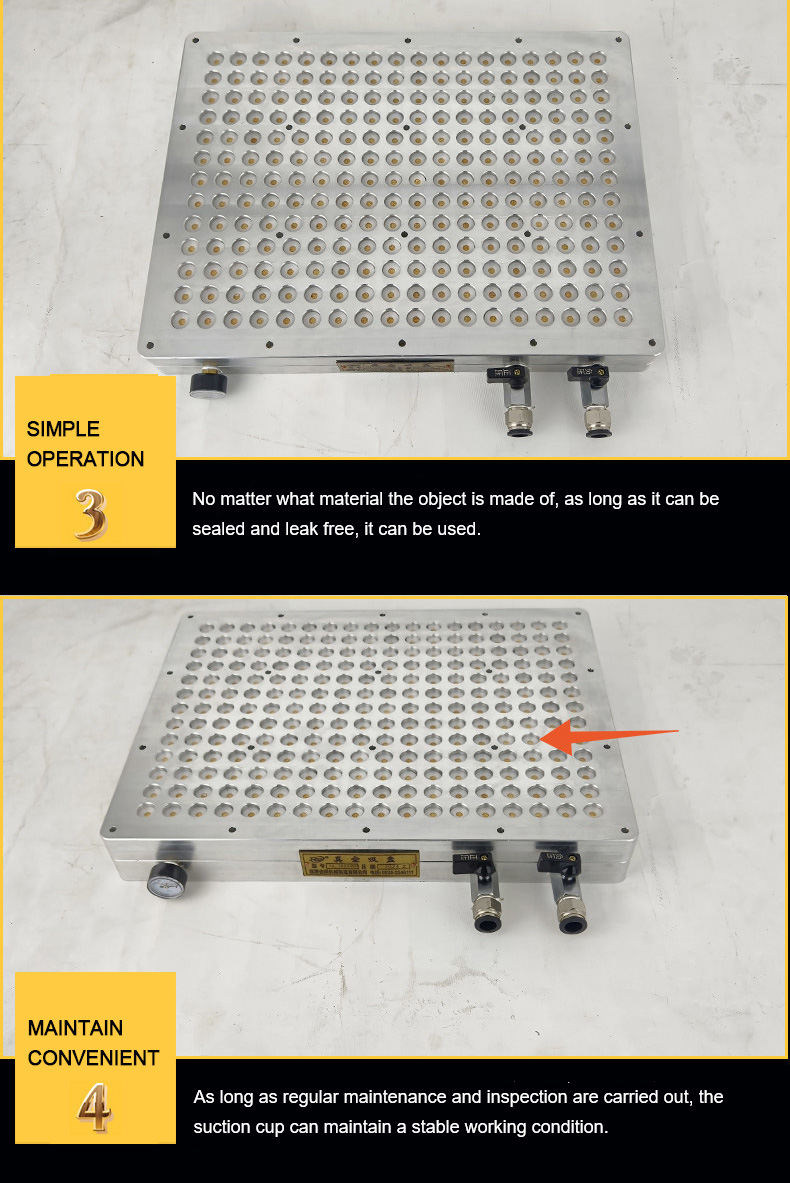

The hollow multi-point vacuum suction cup adopts independent induction suction holes, intelligent suction of sensing product coverage areas, automatic closure of uncovered areas, self closing of broken holes, no need for sealing strips, good flatness, and can directly adsorb with a certain adsorption surface. It can process milling holes, through holes, irregular parts, and hollow parts. The suction cup surface is equipped with a sealing pad, which increases the adhesion between the product and the suction cup, effectively enhances the adsorption capacity and stability, and is safer and more efficient. A minimum of 1600W dedicated vacuum suction cup vacuum pump is required.

Model	External dimensions(mm)			Vacuum degree	Accuracy
Model	long	wide	high	Vacuum degree	Accuracy
300x400	400	300	45	-85KPA	±0.02mm
300x500	500	300	45	-85KPA	±0.02mm
400x400	400	400	45	-85KPA	±0.02mm
400x500	500	400	45	-85KPA	±0.02mm
400x600	600	400	45	-85KPA	±0.02mm
500x600	600	500	45	-85KPA	±0.02mm
500x800	800	500	45	-85KPA	±0.02mm
600x800	800	600	45	-85KPA	±0.02mm

Application

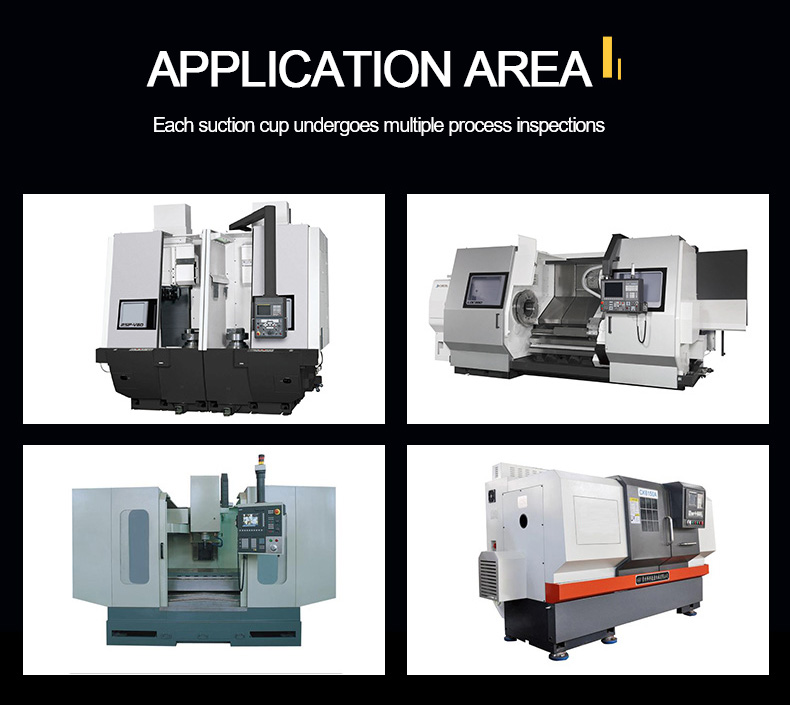

Widely applicable to machine tools, computer gongs, CNC machining centers, CNC milling machines, grinders, engraving machines, aluminum and copper plates, stainless steel plates, rubber plates, glass plates, cardboard and other insulation plates, iron plates, and steel plates can also achieve good adsorption effects.
