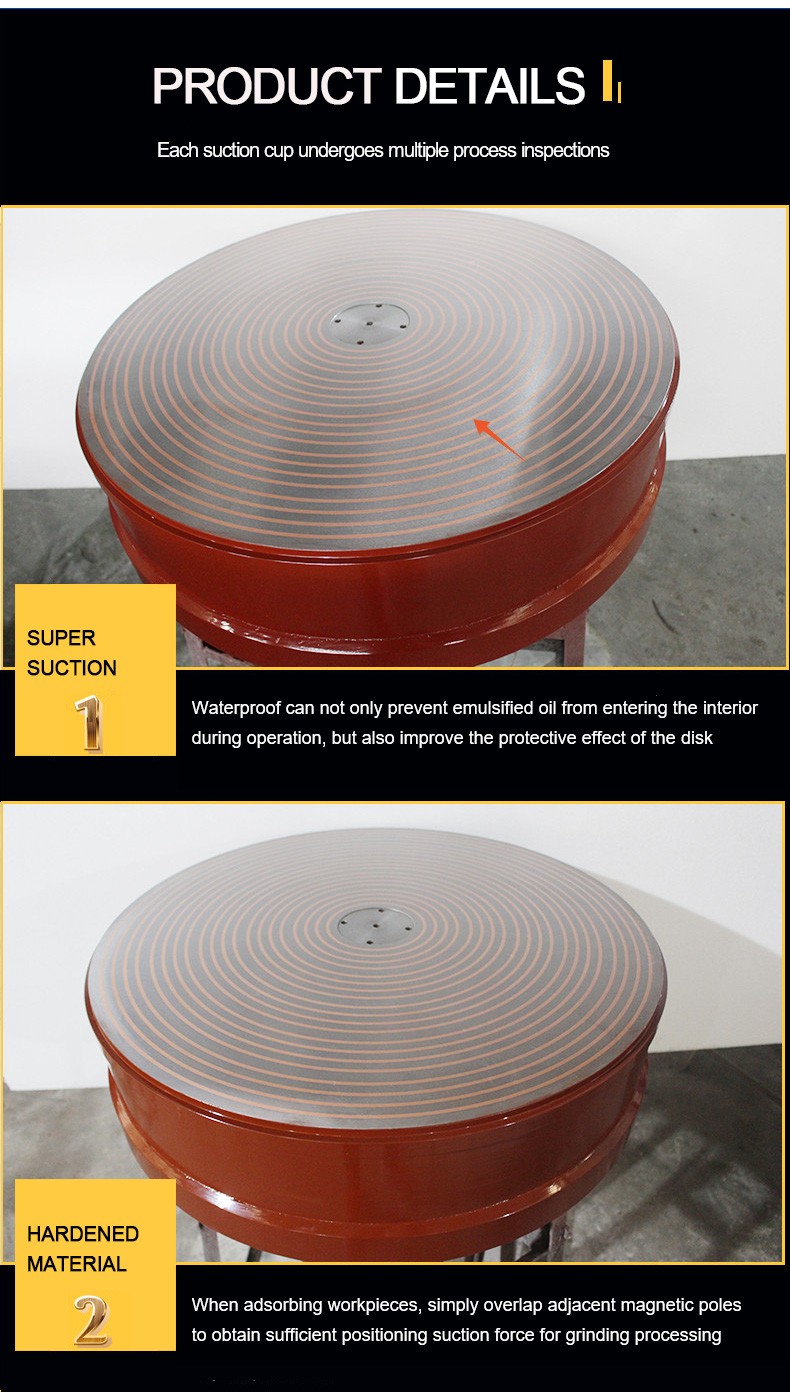

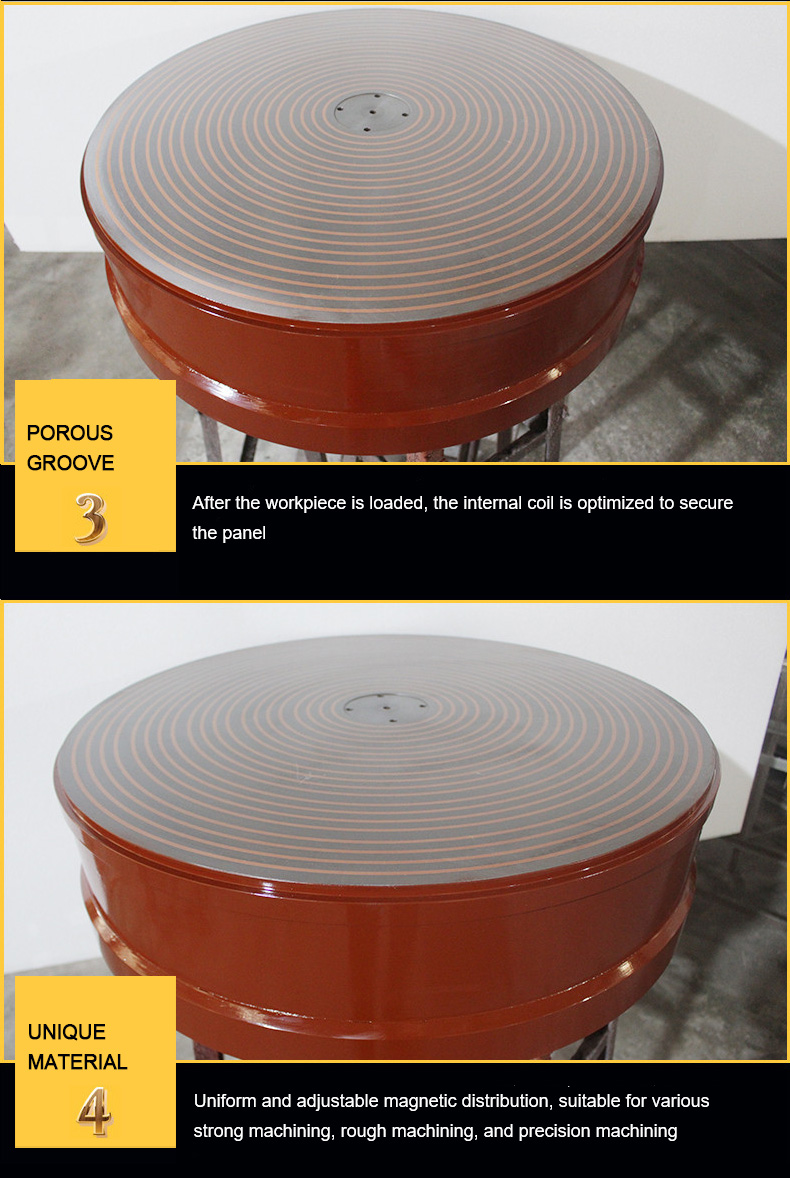

Concentric electromagnetic chuck

Product Introduction

Model X21 circular electromagnetic suction cup is the main component of the circular surface grinder, used to hold magnetic materials for grinding processing, with a suction force of 110N/cm2. Divided into concentric circular electromagnetic suction cups, circular dense pole electromagnetic suction cups, and radial circular electromagnetic suction cups. Circular electromagnetic suction cups are used in various circular surface grinders. The unique coil design ensures a very uniform distribution of magnetic force, making them suitable for holding magnetic materials for medium strength grinding processes. They are safe, reliable, and easy to operate.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 110N/cm²

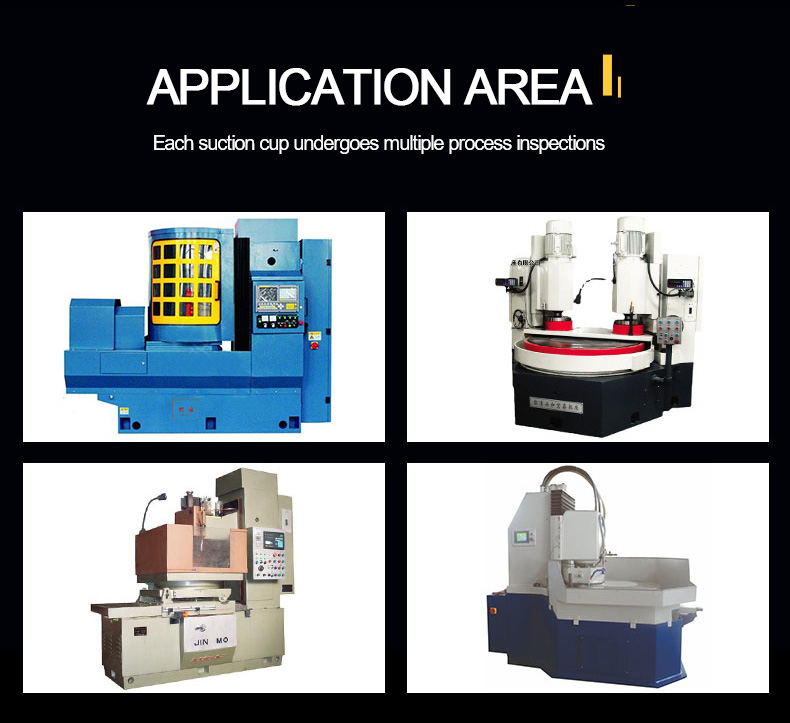

Product application

Suitable for various conical surface grinders, used for medium strength grinding of magnetically conductive materials.
