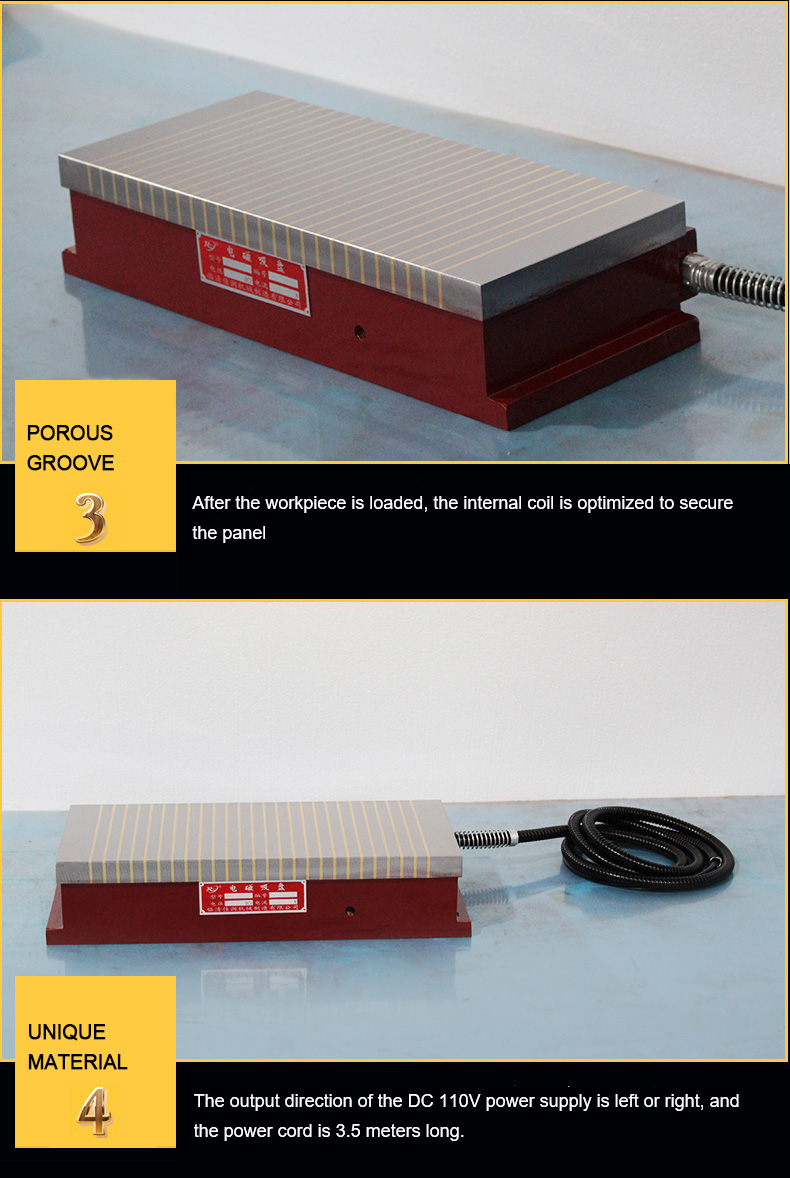

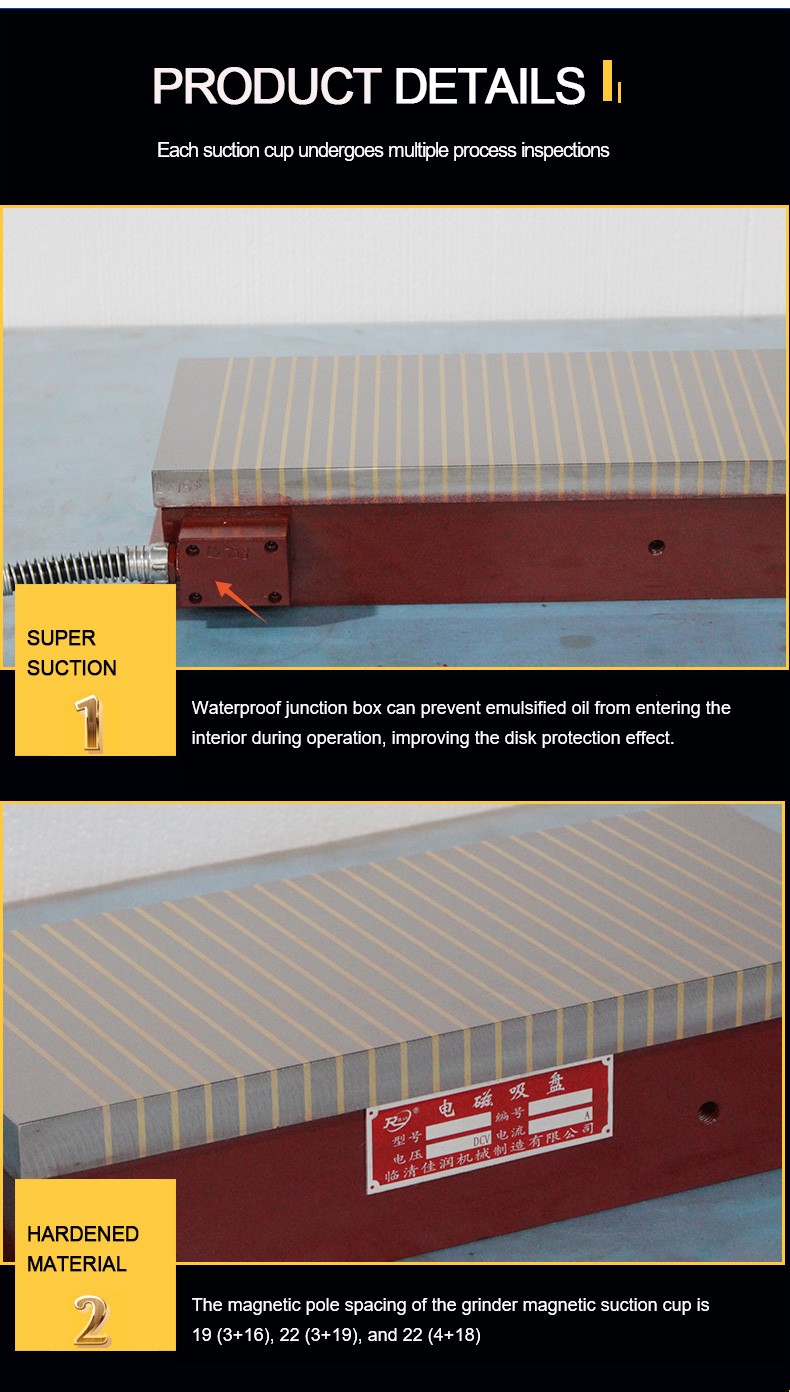

Grinding electromagnetic chuck

Product Introduction

Grinding machine electromagnetic suction cups are classified according to their uses. Grinding machine electromagnetic suction cups can be divided into longitudinal pole electromagnetic suction cups and transverse pole electromagnetic suction cups according to the arrangement of pole strips. According to the density of pole strips, they can be divided into wide pole electromagnetic suction cups and dense pole electromagnetic suction cups. According to their strength, they can be divided into general electromagnetic suction cups and strong electromagnetic suction cups. They are suitable for holding magnetic materials for medium strength grinding processing, with a suction force of 100N/cm2, high rigidity, stable accuracy, and very small thermal variables. The unique coil design makes the suction force of the suction cup very uniform. Safe, reliable, and easy to operate.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 240N/cm2

Product application

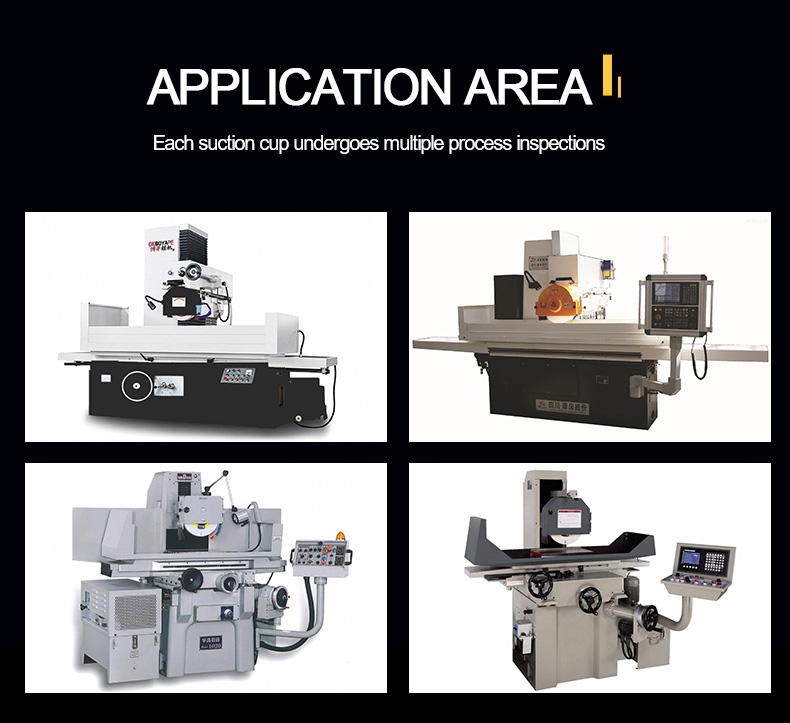

This product can be used for various surface grinders, tool grinders, electric discharge machines, planers, and machining centers to adsorb various magnetic workpieces for processing.
