Grinding dense pole electromagnetic chuck

Product Description

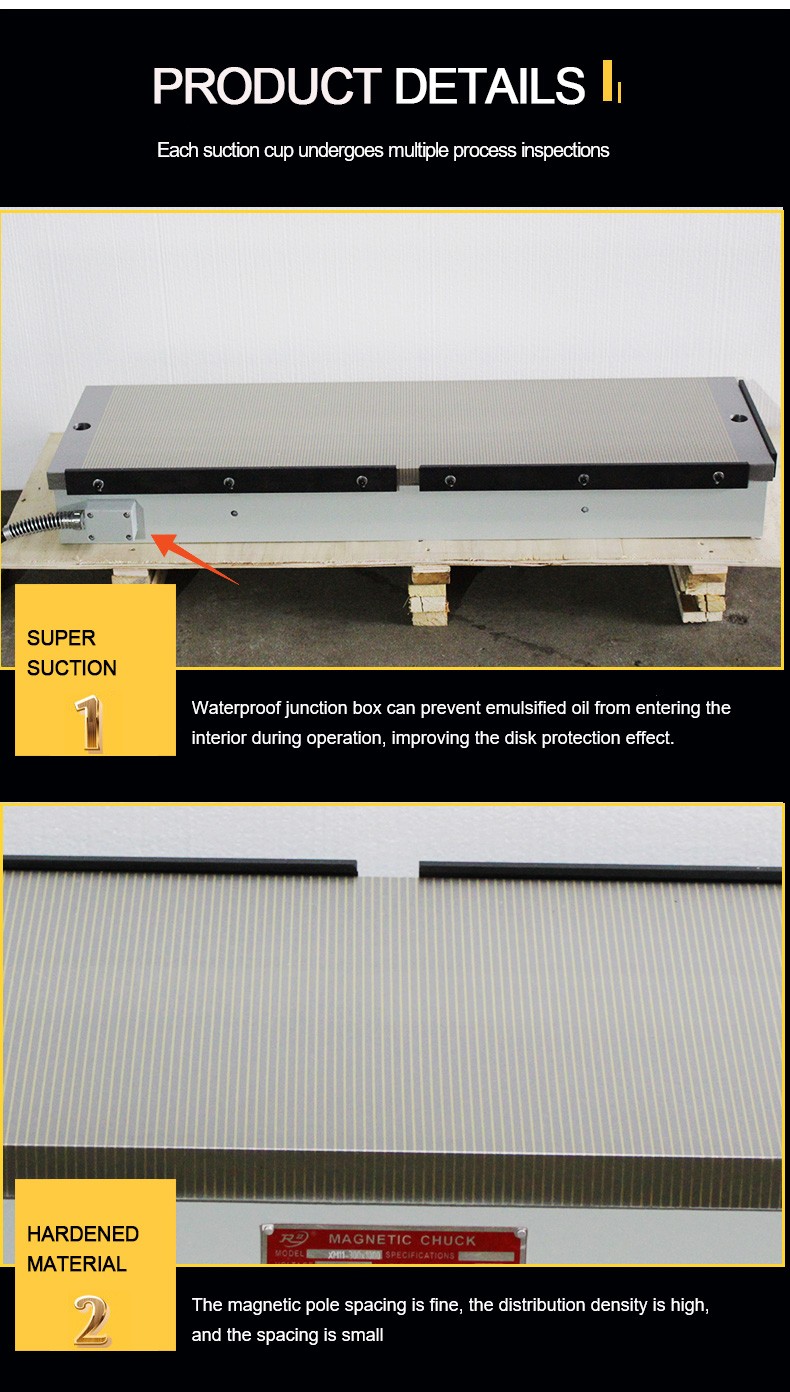

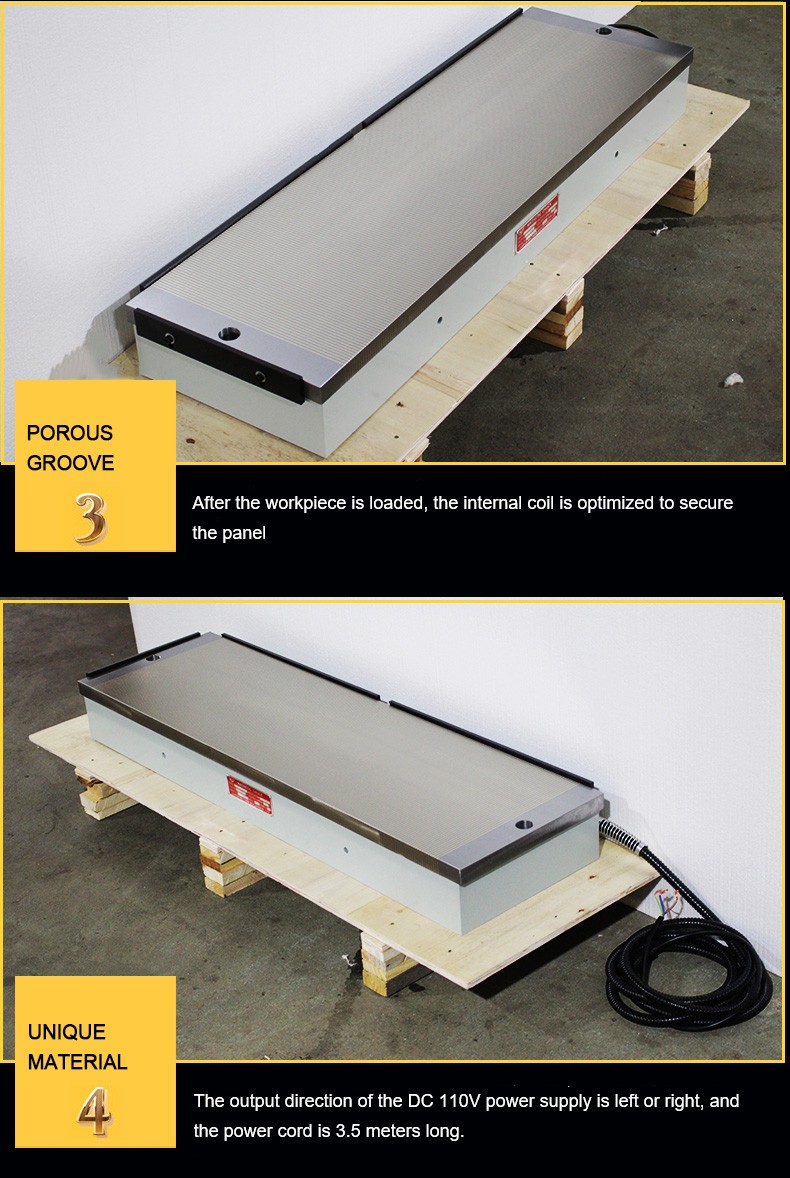

The dense pole electromagnetic suction cup is suitable for grinding thin and small workpieces, with fine magnetic pole spacing and very uniform magnetic force distribution. Good processing technology ensures that the suction cup panel is not separated, and the overall strength can prevent corrosion of the cutting fluid, extend the service life of the suction cup, and ensure the machining accuracy of the workpiece. The unique coil design makes its heat very small and its accuracy stable, with a suction force of up to 120N/cm2. The electromagnetic suction cup adopts DC power supply, which has the characteristics of stability, strong suction force, and low residual magnetism.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 110N/cm2

Product application

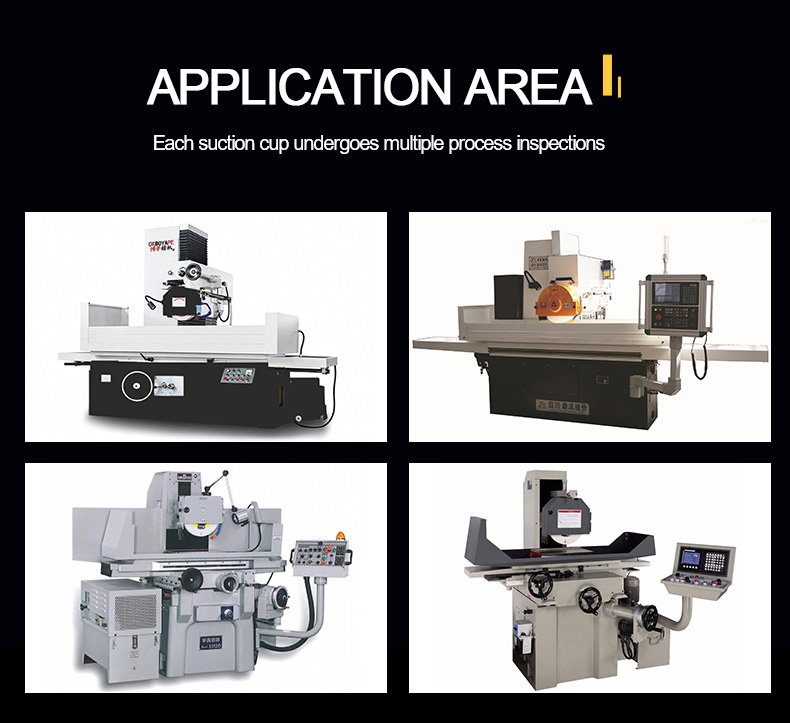

Can be used for surface grinders, tool grinders, EDM machines, gantry milling machines, horizontal milling machines, planers, turret milling machines, machining centers, etc.
