Right-angle dense pole permanent magnet chuck

Product Introduction

The right angle suction cup for wire cutting is suitable for wire cutting right angle magnetic table and fast/slow wire feeding machine tools. The parallelism and perpendicularity of the entire magnetic table on both sides and the base are precise, making it extremely convenient to handle three vertical surfaces after one effective suction of the workpiece Smaller workpieces can be lifted and used with block gauges or shims, and large workpieces or several workpieces can be processed at once, which is convenient and fast. The NYN406 right angle magnetic table is an original creation of our factory. The parallelism and perpendicularity of the entire magnetic table on both sides and the base are controlled within 0.003mm, which is extremely convenient for processing three vertical surfaces after one effective suction of the workpiece. Smaller workpieces can be supported by block gauges or shims for use. Special specifications can be customized.The bottom plate is made of chrome steel heat-treated at 60 degrees Celsius, which is extremely wear-resistant.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 100N/cm2

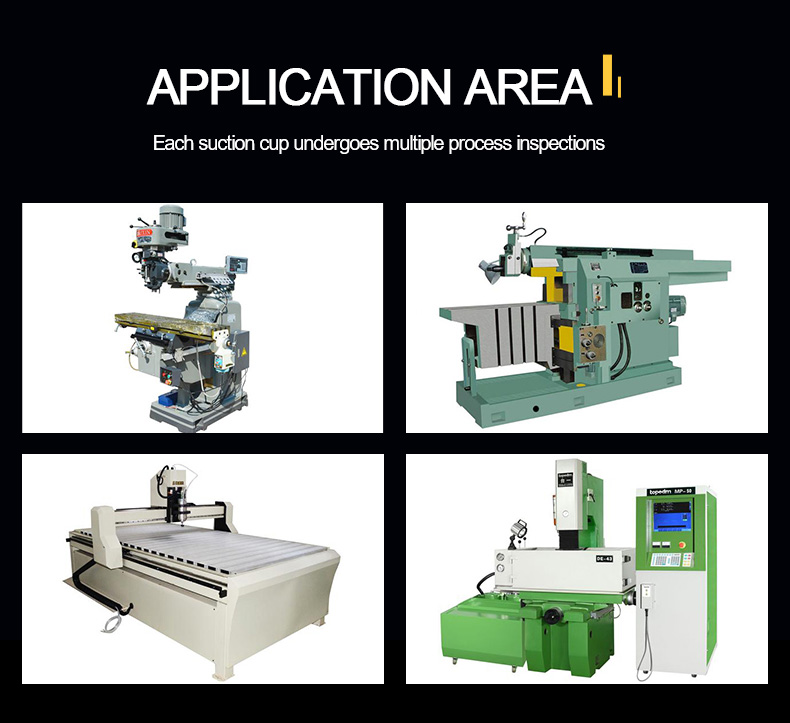

Product application

The right angle suction cup is suitable for equipment such as wire cutting right angle magnetic tables and fast/slow wire feeding machines.
