Product Detail

Circular dense pole permanent magnet suction cup

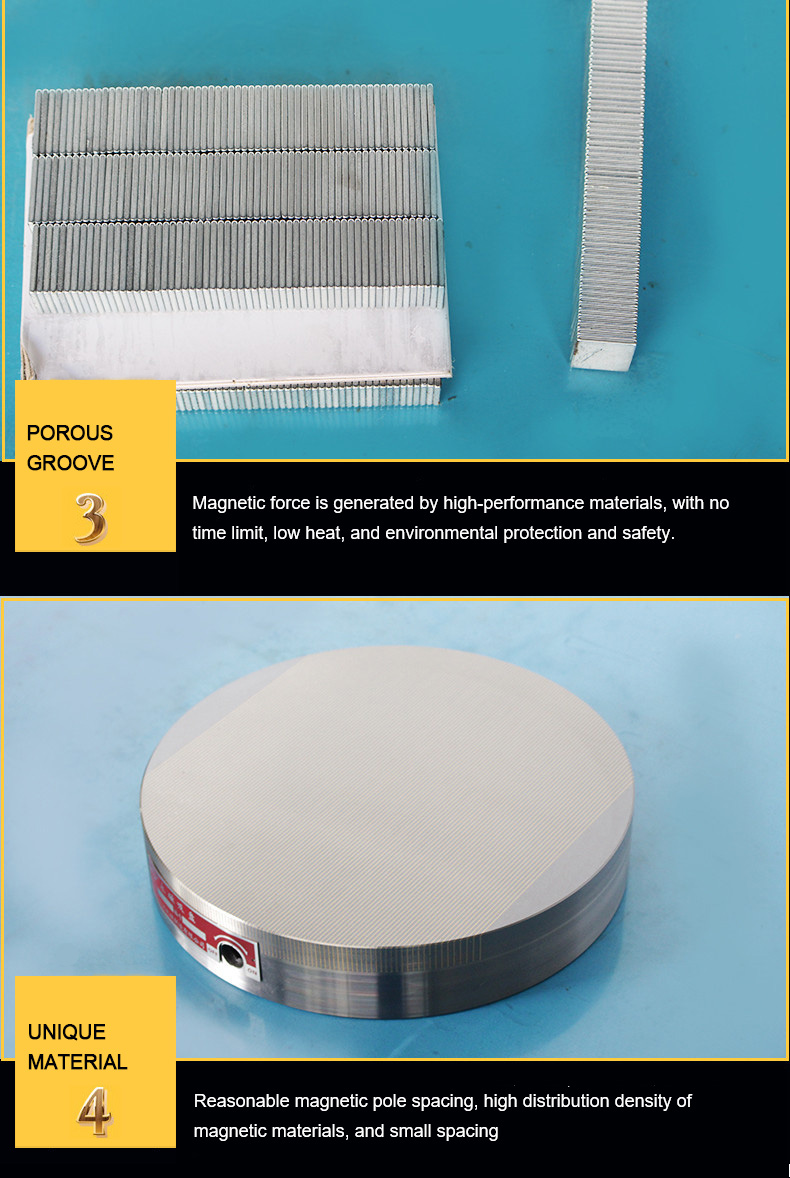

Introduction:: The magnetic pole spacing is fine, the magnetic force distribution is uniform, and the suction cup is specially treated to be non permeable, which can prevent cutting fluid corrosion.

Collect

Details

Product Introduction

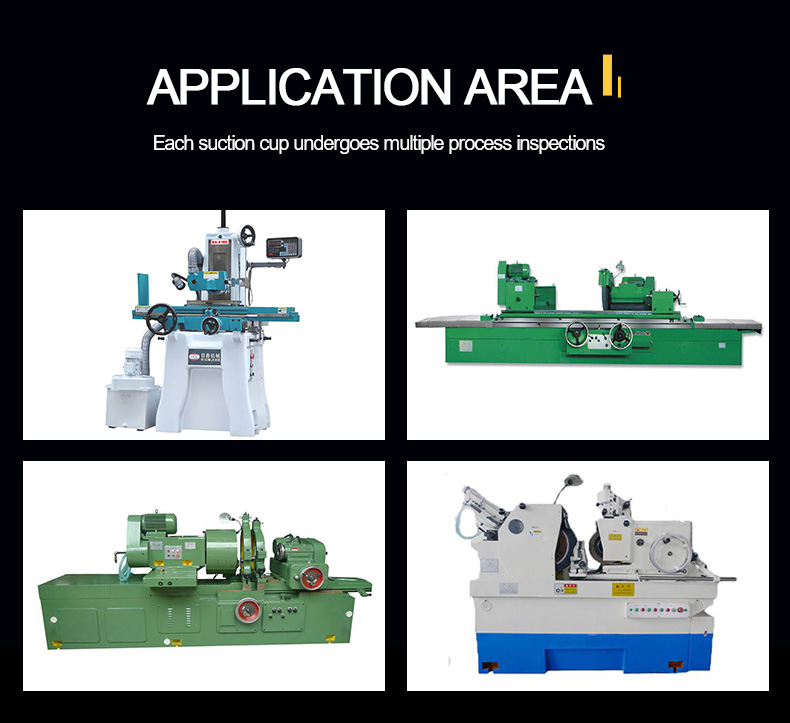

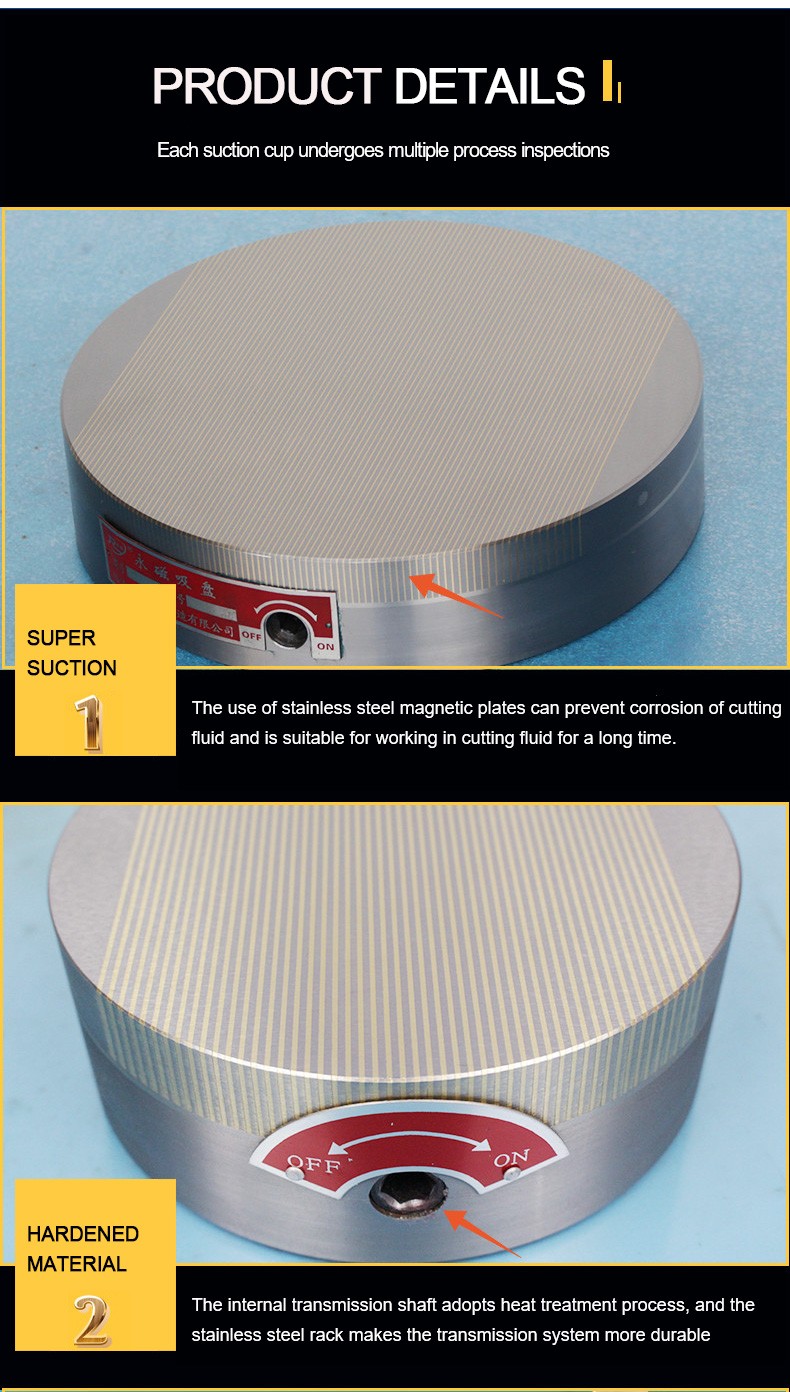

The circular dense pole permanent magnet suction cup is suitable for surface grinding machines, spark machines, engraving machines, wire cutting machines, grinding machines, and fitters for line drawing processing. The magnetic pole spacing of the suction cup is fine, and the magnetic force distribution is uniform. The effect is particularly obvious when processing thin and small workpieces. The precision of the worktable remains unchanged during magnetization and demagnetization, and the suction cup has been specially treated to be non permeable, which can prevent corrosion of the cutting fluid and is suitable for working in the cutting fluid for a long time.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 100N/cm2

Imperial	model	Dimensions (mm)		polar distance(mm)	suction(N/cm²)
Imperial	model	diameter	high	polar distance(mm)	suction(N/cm²)
4	Xm51100	100	55	2(0.5+1.5)	≥80
5	Xm51125	125	55	2(0.5+1.5)	280
6	Xm51160	160	55	2(0.5+1.5)	≥80
8	Xm51200	200	55	2(0.5+1.5)	280
10	Xm51250	250	60	2(0.5+1.5)	≥100
12	Xm51300	300	60	2(0.5+1.5)	≥100
14	Xm51350	350	60	2(0.5+1.5)	2100
16	Xm51400	400	60	2(0.5+1.5)	≥100
20	Xm51500	500	60	2(0.5+1.5)	2100
24	Xm51600	600	60	2(0.5+1.5)	≥100
28	Xm51700	700	60	20.5+1.5)	2100
32	Xm51800	800	60	2(0.5+1.5)	≥100
