Sine integrated single tilt pole permanent magnet chuck

Product Introduction

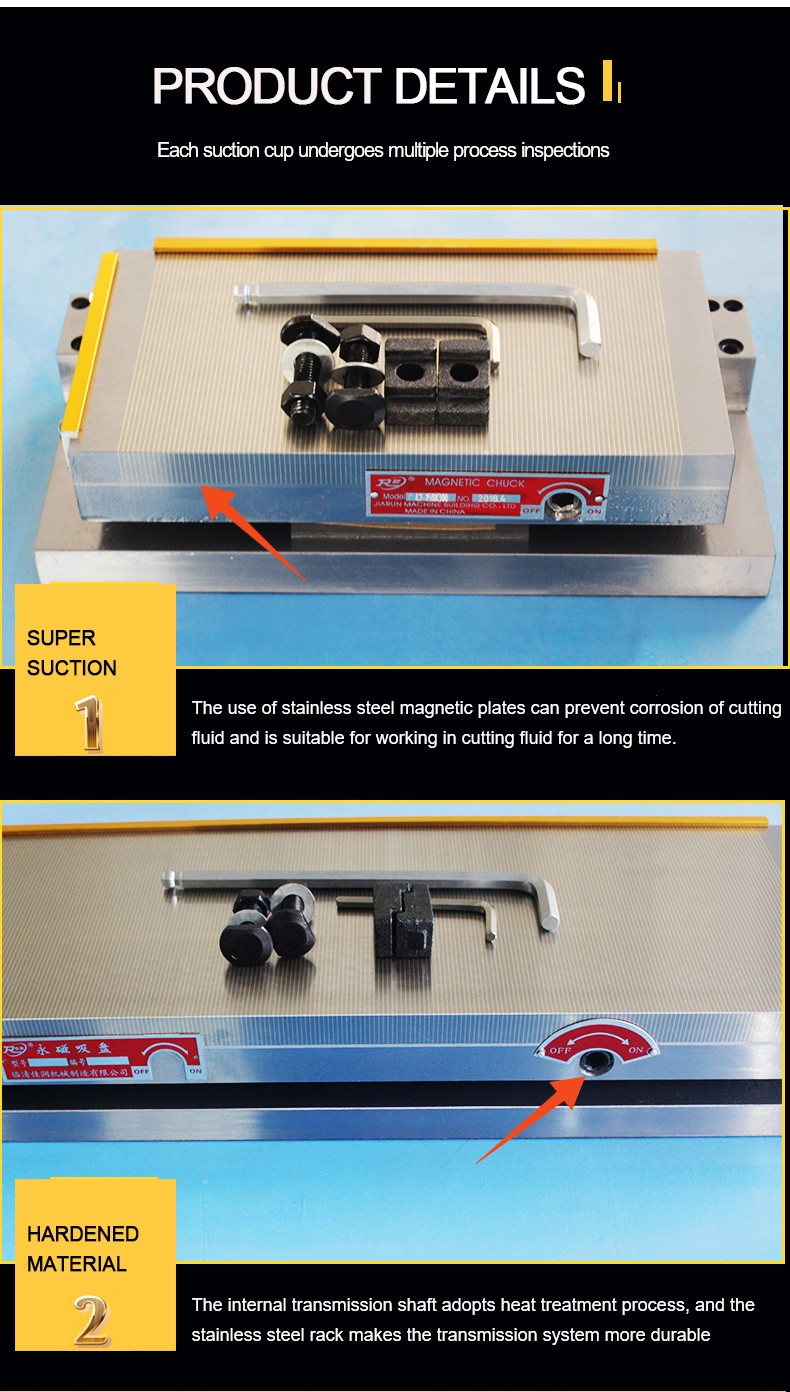

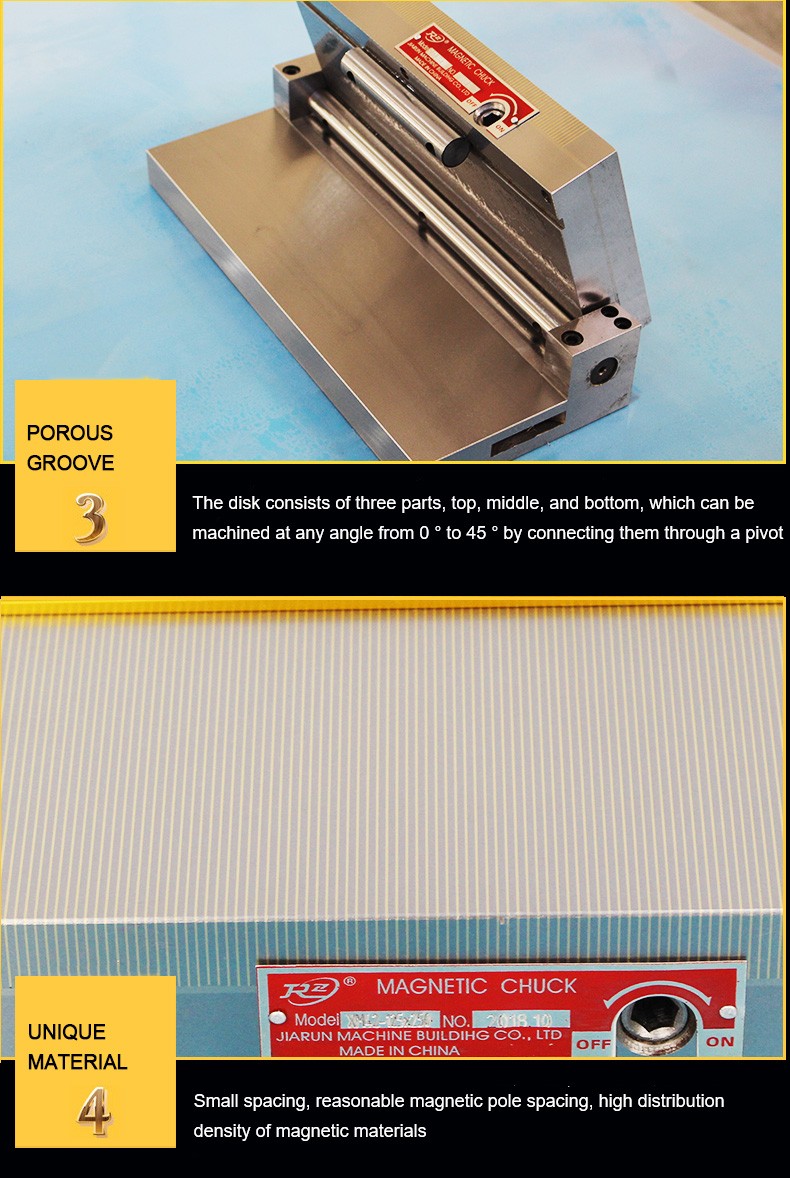

Suitable for precision grinding of single-sided angles on various surface grinders, engraving machines, wire cutting machines, and electric discharge machine tools. Processing at any angle from 0 to 45 degrees, magnetic differential magnetic circuit with strong and uniform magnetic force, low residual magnetism, high-performance rare earth magnetic steel magnetic source, stable performance, long service life, and special processing technology to achieve higher adjustment accuracy. High quality materials are selected, with strong suction, low residual magnetism, and uniform magnetic distribution. The planar accuracy of the magnetic surface remains unchanged when switching on/off. The magnetic pole arrangement is only 1.55mm, which can hold smaller parts. The suction cup has undergone special treatment and is non permeable, which can prevent cutting fluid corrosion and is suitable for working in cutting fluid for a long time.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point. Suction force: ≥ 100N/cm2

Product application

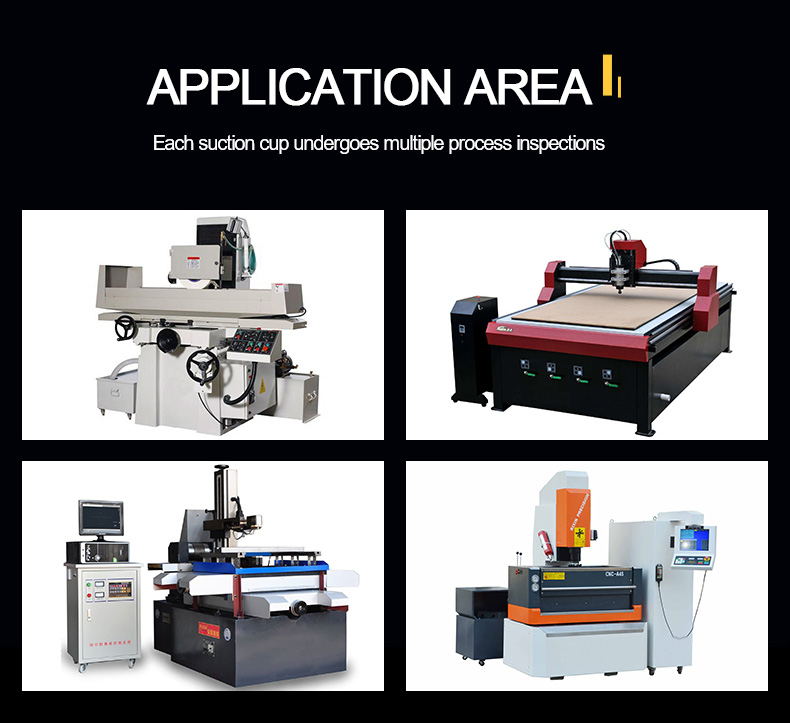

Suitable for precision grinding of single-sided angles on various surface grinders, engraving machines, wire cutting machines, and electric discharge machine tools.
