Super strong grid permanent magnet sucker

Product Introduction

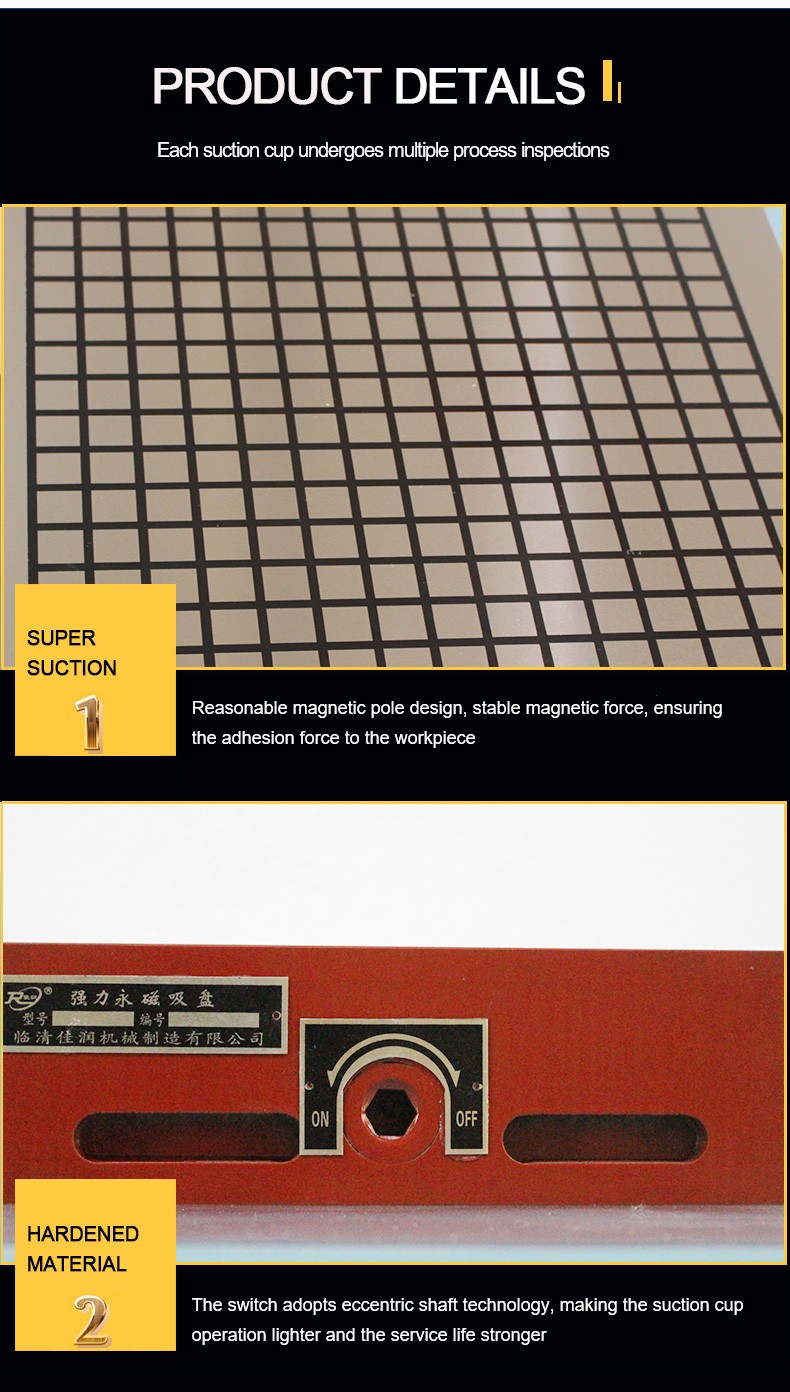

Fangge ultra strong permanent magnet suction cup is suitable for CNC machining machines and precision milling machines. The milling process of precision milling machines is currently the most advanced powerful disk technology. The unique magnetic pole split design ensures the maximization and uniformity of magnetic force. The powerful magnetic force comes from the combination of square magnetic poles, with dense magnetic pole distribution and high magnetic field strength. The suction force can reach 240Ncm2, which can release the internal stress in the workpiece while reprocessing, resulting in high-precision workpieces. The permanent magnet super strong suction cup meets the high precision requirements for workpiece clamping and the need to shorten installation and adjustment time in machining centers, CNC milling machines, etc., filling a gap in the super strong magnetic clamping tool industry for machine tool accessories. It can significantly increase power, maintain constant and uniform magnetic force, be predictable, and easily and quickly replace workpieces, achieving four sided machining. The workpiece can exceed the range of the workbench, usually reducing the auxiliary time by more than 70% -80%.

Specification and model

Residual magnetism: ≤ 5% of the suction force at that point

Suction force: ≥ 240N/cm2

Product application

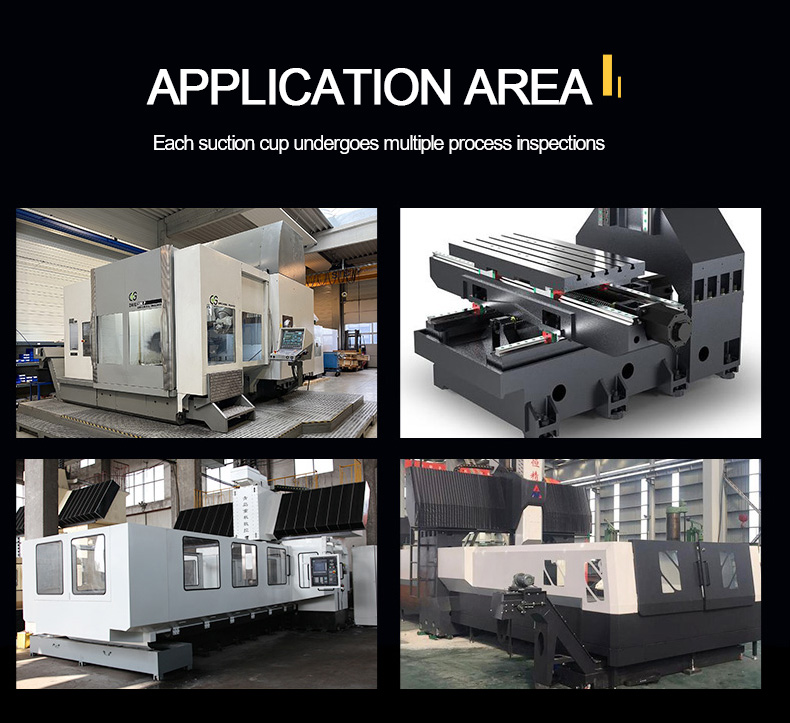

Suitable for milling machines, planers, engraving machines, and machining centers for part positioning, milling, planing, grinding, or other positioning processes.
